120 frame display/recording 16 channel camera inputs (NTSC/PAL) 16 channel sensor inputs (Optional) 4 relay output (Optional) 1 TV-Out port (1 Ch. Switching) Supports RS-232, 422, 485 Pan/Tilt port (Optional RS232 to 485/422 Converter) Supports watchdog Supports Windows XP, Vista (32-Bit Editions only) Supports DiViS DVR Software

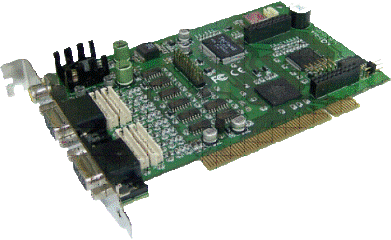

	120A16 (16CH)

DVR Board 120 fps display/recording 16 channel camera inputs (NTSC/PAL) 16 channel sensor inputs (Optional) 4 relay output (Optional) 1 TV-Out port (1 Ch. Switching) Supports RS-232/422/485 Pan/Tilt port (Optional RS232 to 485/422 Converter) Supports watchdog (Automatic system restoration on system failure) DVR Software Storage of high quality image data Sound recording and support for two-way voice communication Various modes of multi-view Screen (1, 4, 6, 9, 10, 16 Multi-view screen) Movement detection and sensor activation Fast and easy data search Schedule management Automatic data backup E-mail Event Alert, IP Address Dispatch (for use with dynamic IP) Control of multi-systems from a remote location (DiViS-Net) Support for the Internet Explorer (DiViS-Web) DiViS CH01308 - Color CCD with IR Camera 1/3" Color CCD 420 TV Lines, NTSC 1/60 ~ 1/100,000 Sec Electronic Shutter Time 6mm Lens 20 IR, Max 50 Ft. Illumination CDS Auto IR power control Auto Gain Control(AGC) Usable at 0 Lux with LED on. DC12V +- 10% 400mA Dimension : 60(W) x 115(L) x 120(H) mm (with Bracket) Automated Security Surveillance Uses for automatic security surveillance (banks, buildings, factories, warehouses, apartments, parking lots, etc.) Management and Surveillance of Trespassers Uses for places with needs of management and surveillance of large crowds of people (hotels, casinos, department stores, large supermarkets, etc.) Management and Surveillance of Branch Stores Uses for needs of management and surveillance of each branch store from a remote location. (chain stores, agencies, etc.) Advertisement Possibilities for Companies and Private Schools Uses for advertisement or educational needs of Companies and Private Schools using real-time camera image on the internet. (companies, schools, private schools, kindergartens and other educational institutions, etc.) Model 120A16 O/S Windows XP, Windows Vista (32-Bit Editions only) Motherboard Intel Chipset CPU Intel Pentium 4 2.4GHz or faster RAM 512MB Minimum Hard Drive 80GB or above Graphics Card ATI Radeon 9000 or above, Intel On-Board Video Controller Camera Inputs 16 Channels (NTSC/PAL) Sound Inputs 2 Channels (Optional 16 Channel) Sensor Inputs 16 Channels (Optional) Relay Outputs 4 Channels (Optional) Composite Output 1 Channel (NTSC/PAL, switching) Max. Display Speed 120 Frames/sec (NTSC), 100 Frames/sec (PAL) Max. Recoding Speed 120 Frames/sec (NTSC), 100 Frames/sec (PAL) Resolution NTSC - 352x240, 704x240/480 (PAL - 352x288, 704x288/576) DVR Software DiViS-DVR, DiViS-Net, DiViS-Web DiViS DVR, your answer to multi-functionality with proven reliability With DiViS-Net, you have access and total control of up to 16 DiViS DVR systems, including all of it's cameras(a total of 256 cameras) and search through and store all data of all the systems. DiViS-Web gives you the ability to check each camera with nothing more than an internet browser
